Connection Method

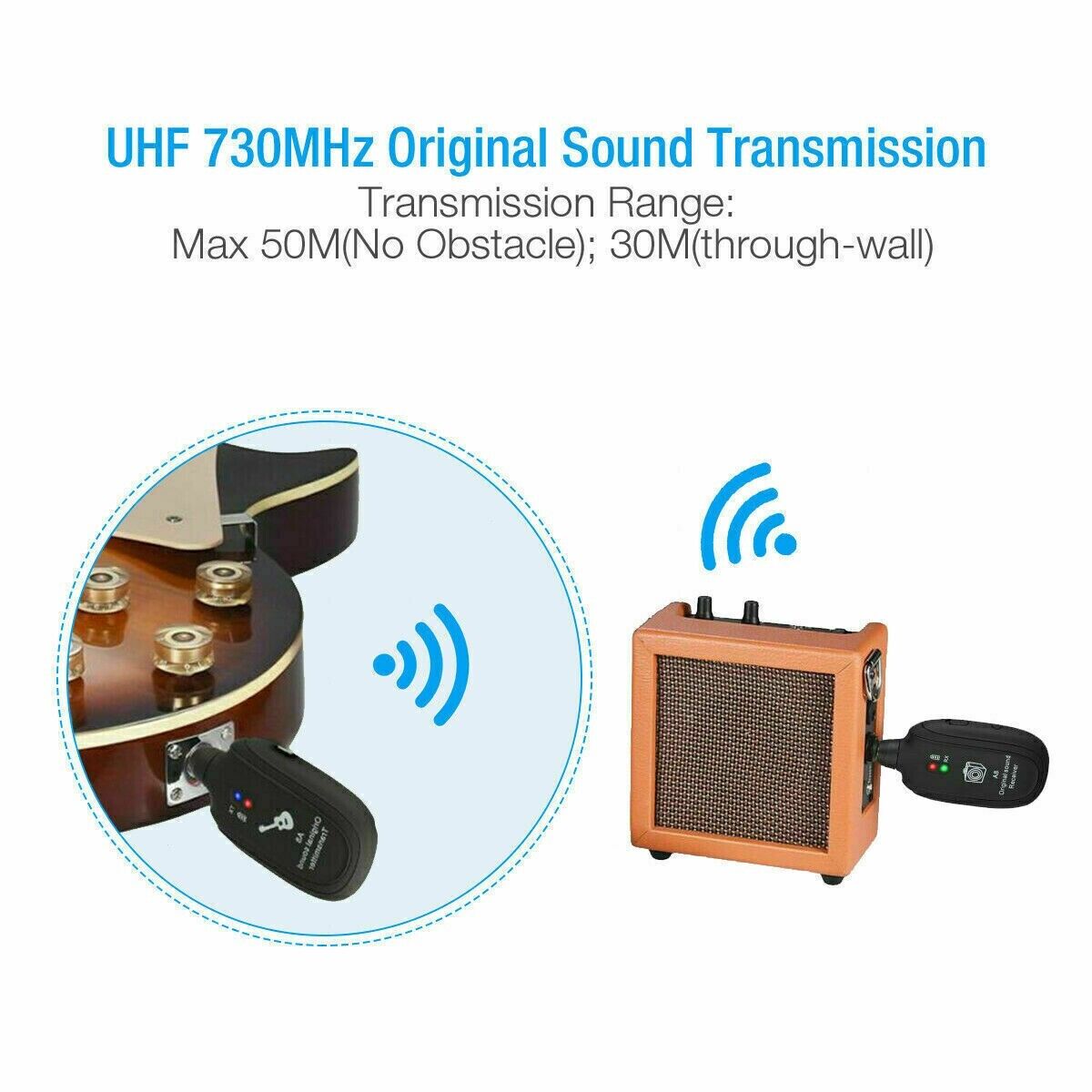

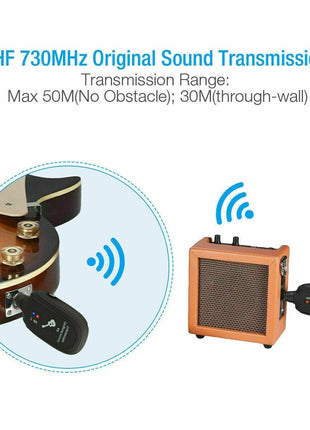

Max. Transmission Distortion: <50m(no obstacle)

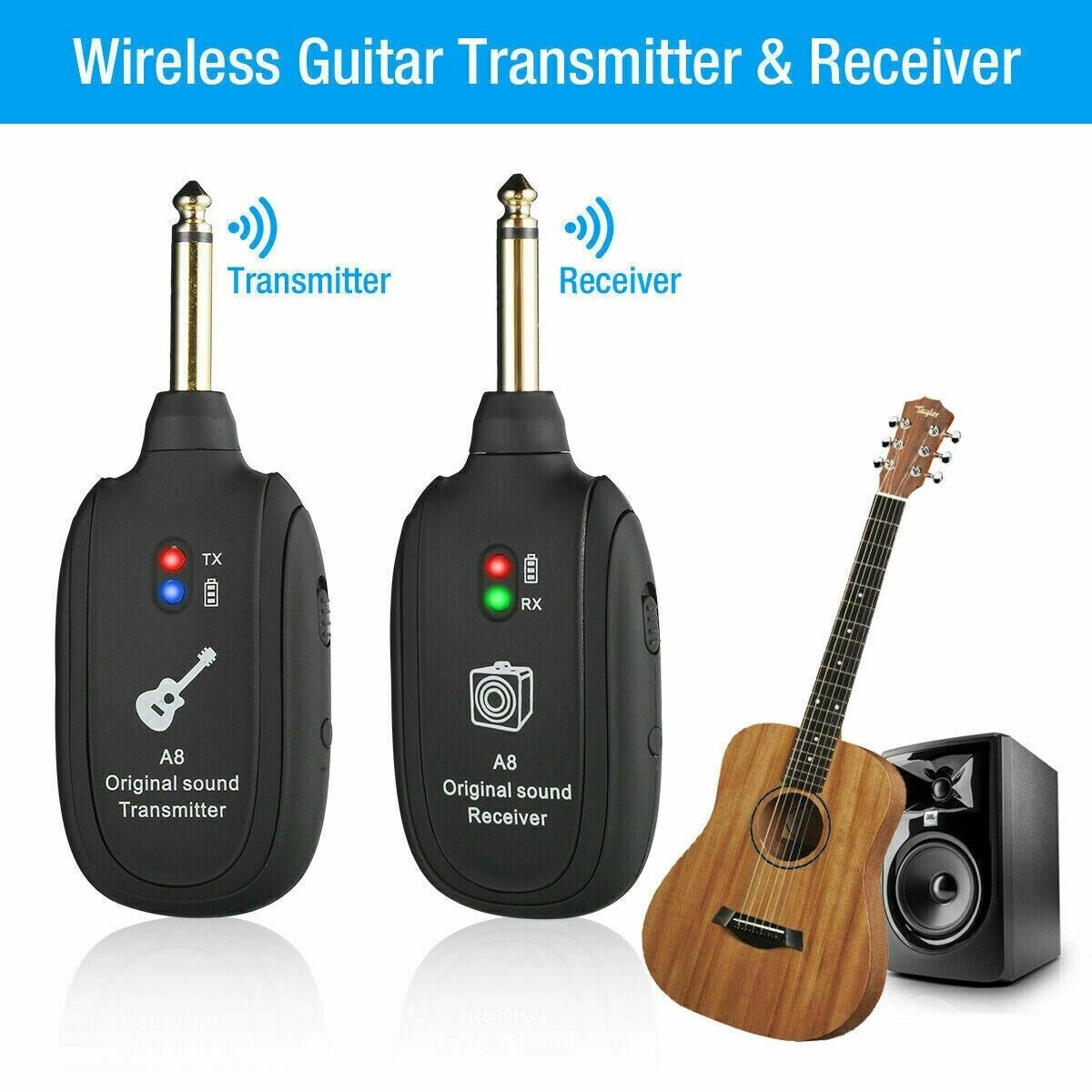

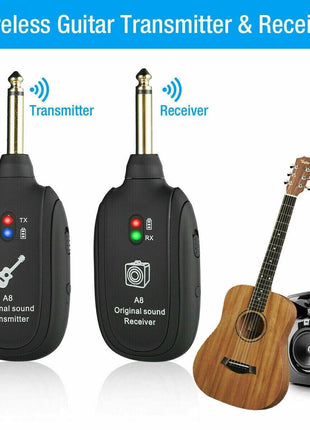

One end is connected to the instrument audio port(such as electric guitar)

The other end is connected to the sound system(such as speaker), transmitting audio signals wirelessly.

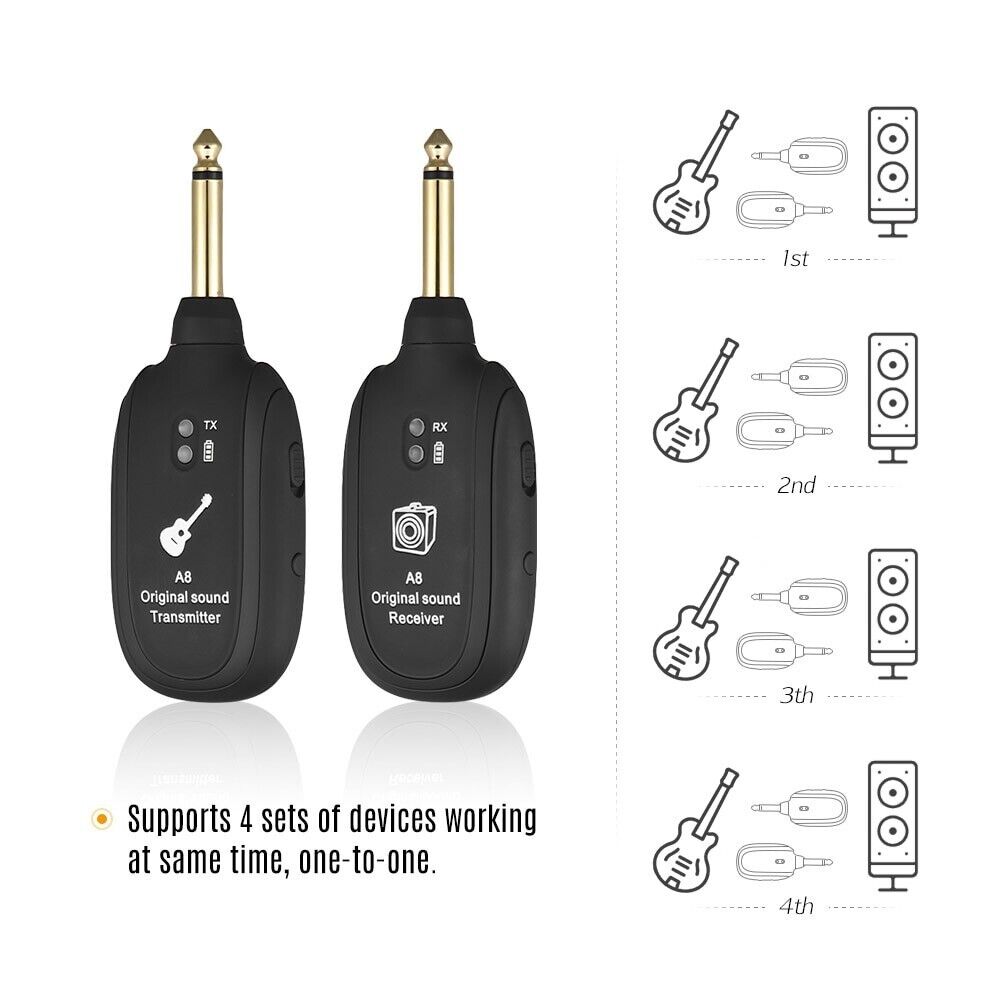

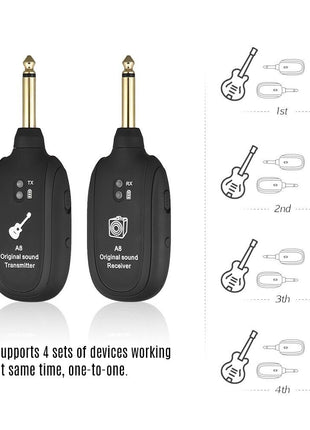

There are four channels, up to four systems can be used simultaneously, the signals won't interfere with each other.

Long Working Time

Charging time: <2 hours

Working time: 4~6 hours (full charge)

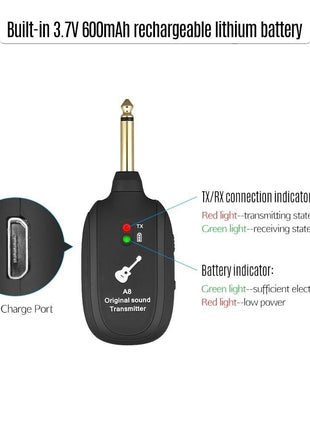

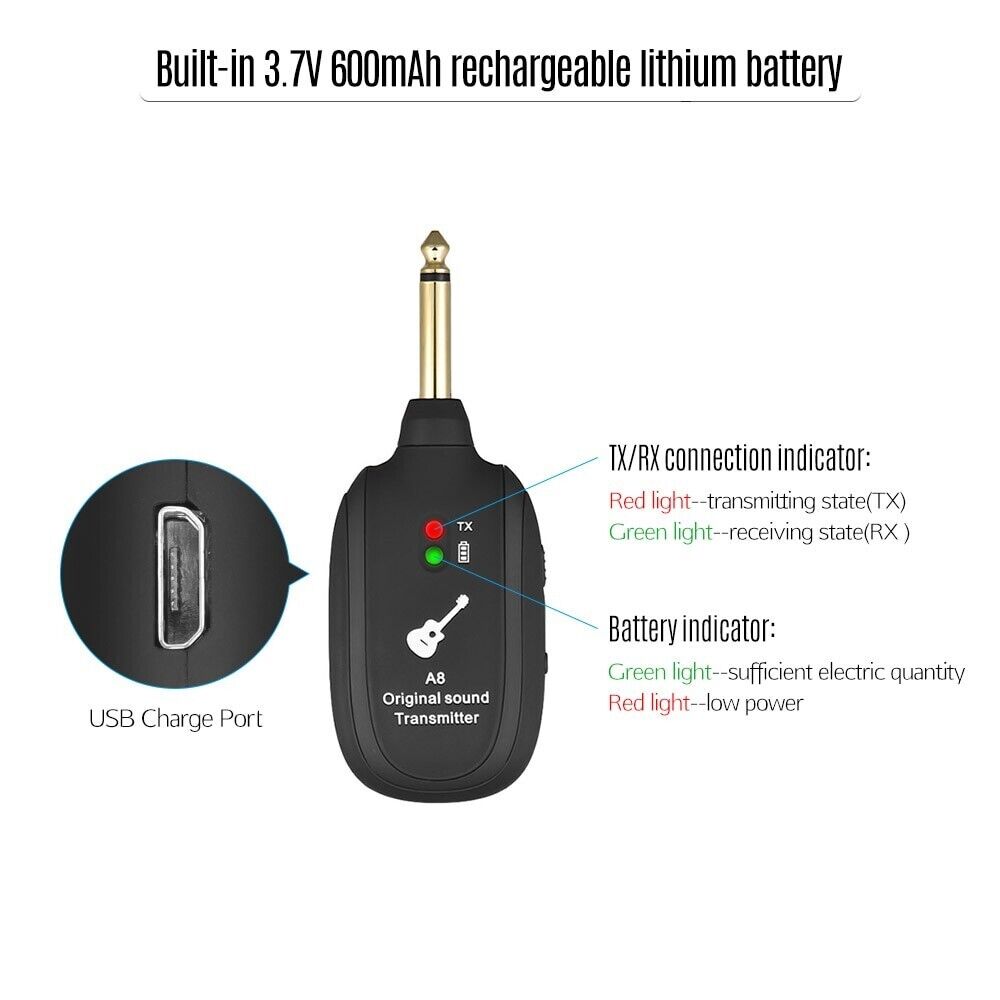

Power supply: Built-in 3.7V 600mah rechargeable lithium battery (1 to 2 USB charging cable)

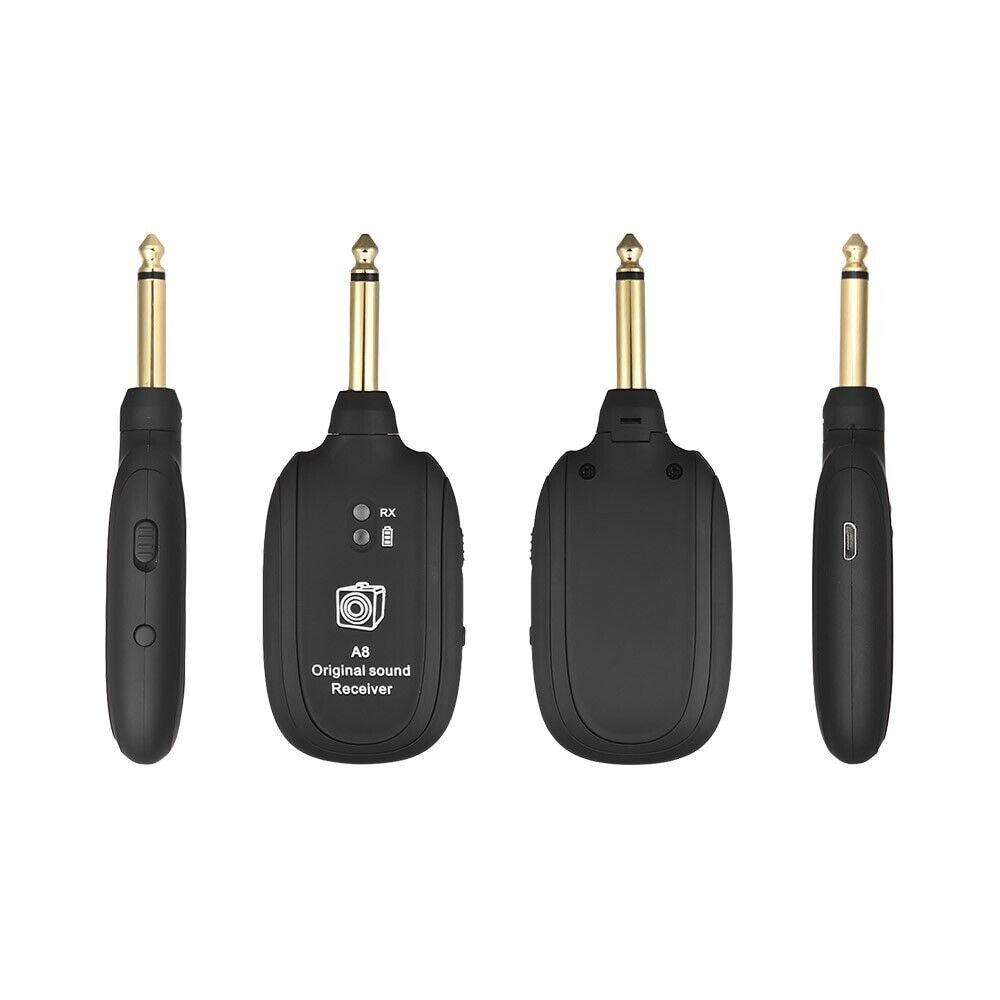

Charging port: micro USB port

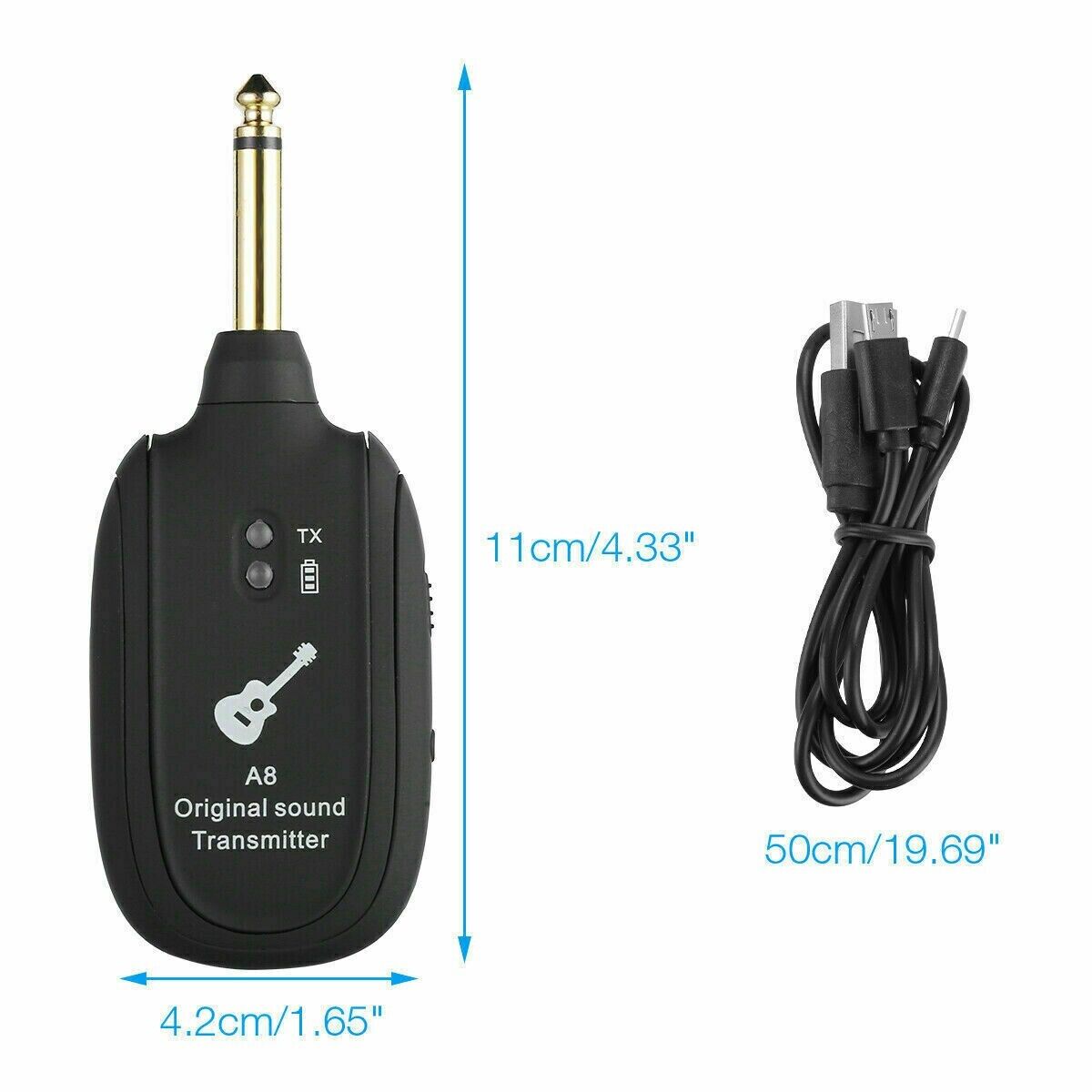

Transmitter plug: 6.35/6.5 universal audio plug.

Note: Please remember to turn off the transmitter when not in use; be sure to turn off and charge when charging.

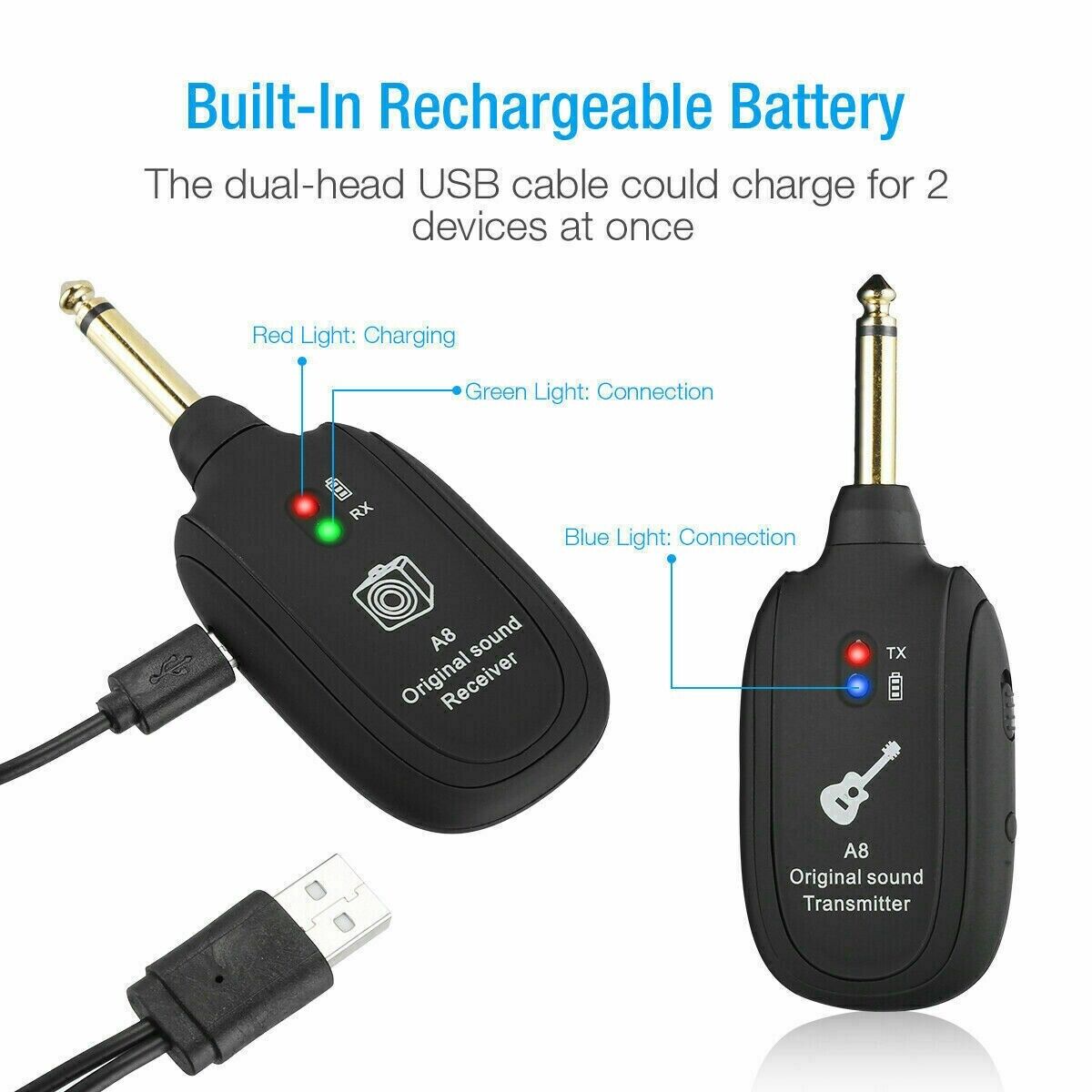

INDICATOR LIGHTS

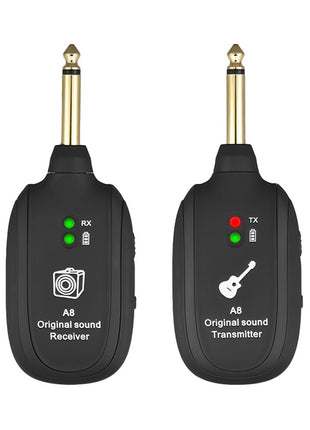

Transmitter indicator light: When the device is turned on, the indicator light will flash the corresponding number of times according to the frequency band, indicating the channel number of the unit. After turning on, the transmitter indicates that the red light is always on, and it enters the transmitting state.

Receiver indicator: If the transmitter signal is received, the receiver indicates that the green light is always on, and it enters the receiving state. (If no signal is received, the green light is off)

Note:

Short press the RX or TX indicator will flash continuously, the number of flashes indicates the corresponding channel number.

Two or more machines should use different frequency bands at the same time.
